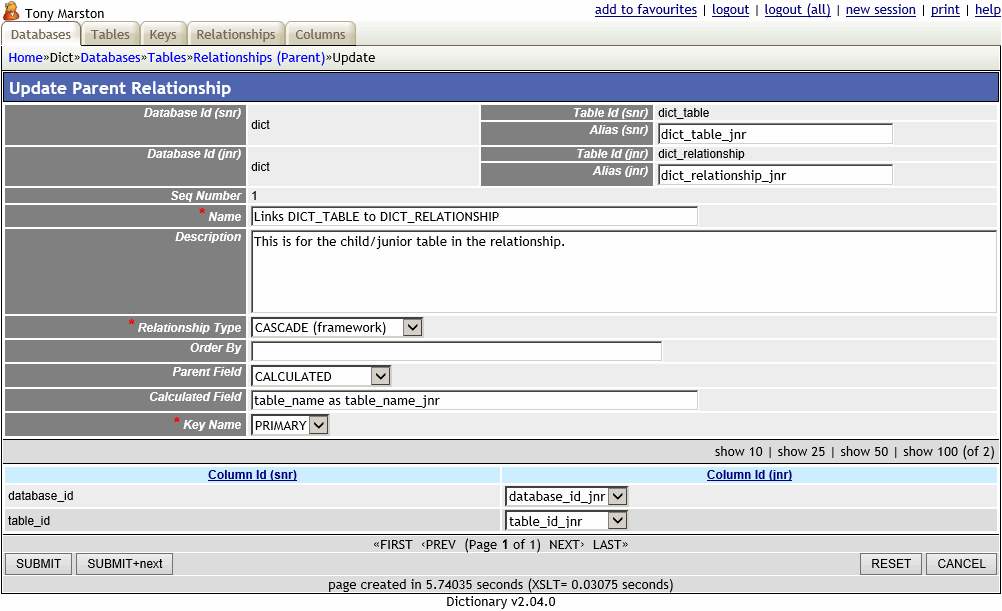

The purpose of this function is to allow the user to update the details of entries on the DICT_RELATIONSHIP table of the data dictionary. This will also allow amendments to the DICT_RELATED_COLUMN table.
This form is accessed by an option on the navigation bar in the List Relationship screen.
For a complete description of how this type of form works please see Transaction Pattern MULTI 4.
|database_id_snr||STRING||The identity of the parent/senior database in the relationship.|
|table_id_snr||STRING||The identity of the parent/senior table in the relationship.|
|table_alias_snr||STRING||Where multiple relationships between the same tables exist this is a means of providing an alias for the parent/senior table.|
|database_id_jnr||STRING||The identity of the child/junior database in the relationship.|
|table_id_jnr||STRING||The identity of the child/junior table in the relationship.|
|table_alias_jnr||STRING||Where multiple relationships between the same tables exist this is a means of providing an alias for the child/junior table.|
|seq_no||NUMERIC||If there is more than one relationship between the same tables - in other words, it has duplicates - then this value is a means of making the key unique. The default value is zero for the first entry, and should be incremented for duplicate entries.|
|relation_name||STRING||A user-defined name for the relationship.|
|relation_desc||TEXT||Optional. A user-defined description for the relationship.|
|relation_type||STRING||This specifies how the relationship is to be treated when deleting entries from the parent/senior table. Possible values are:
|orderby||STRING||This is only used when REL-TYPE = 'CASCADE (framework)'. It identifies the sequence in which child entries will be processed when they are deleted.|
|parent_field||STRING||When dealing with a single occurrence from the child table there is code in the standard table class which will attempt to access the parent (foreign) table and bring back one of its fields for inclusion in the data array for the child. This is used to specify which field to return. Possible values are:
|calc_field||STRING||This is only used when PARENT-FIELD = 'CALCULATED'. It provides a means of returning one or more values from the parent table. For example:
|key_name||STRING||This will default to the PRIMARY key, but will show the names of other unique keys if they are available.|
|The following fields are for the related columns:|
|column_id_snr||STRING||There will be a separate row for each field within the selected key of the senior (parent) table.|
|column_id_jnr||STRING||The identity of the corresponding field in the junior (child) table.|
