Prototype Product Application

By Tony Marston

29th June 2006
Amended 9th July 2006

Introduction
Database Schema - Product details
Product Definition
Product Category
Product Identification Codes
Product Features
Units of Measure
Product Search
Price Components
Database Schema - Inventory
Inventory Item
Inventory Item Location
Inventory Item Status
Inventory Item Variance
Lot Tracking
Amendment History

Introduction

The download of the Radicore framework includes several prototype applications which demonstrate the kind of application which the framework is designed to support. One of these is the PRODUCT application, and the purpose of this article is to provide a description of that application so that you can see what it does as well as how it does it. This may prove useful in the event that you should ever want to build your own version of the prototype.

Database Schema - Product details

This is the database schema used by this application showing all the entities (tables) and the relationships between them.

This schema is based on the one documented in The Data Model Resource Book by Len Silverston.

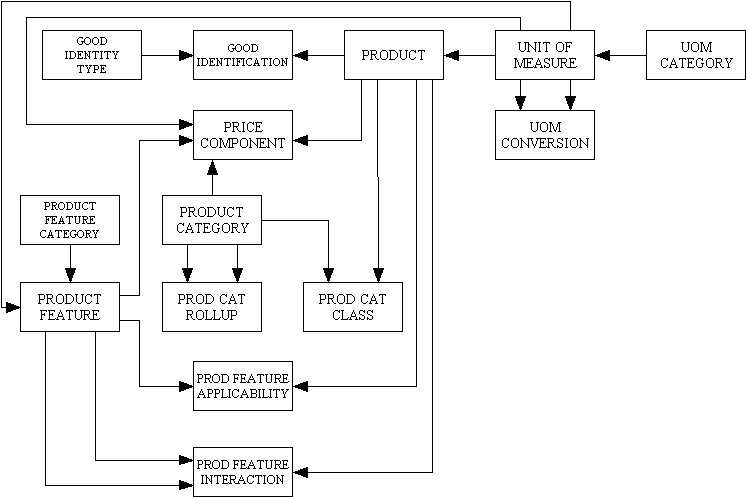

Figure 1 - Database Schema (Product details)

good_identification table good_identity_type table price_component table product table product_category table product_feature table product_feature_category table prod_cat_class table prod_cat_rollup table prod_feature_applicability table prod_feature_interaction table unit_of_measure table uom_category table uom_conversion table product-prototype-001 (3K)

Product Definition

The product database includes products which the organisation provides. These may be assembled or manufactured internally, or may be obtained from external suppliers. Some of the information may be independent of the supplier, such as the description, category and features of the product. Some of the information may depend on the supplier, such as availability and pricing.

PRODUCT table
product_id This is the entry's identity.
product_name This is the entry's description.
product_subtype
  • Good
  • Service
uom_id This is a foreign key to the UNIT_OF_MEASURE table.
date_intro This is the date the product was introduced.
end_date_sales This is the date after which the product will no longer be sold.
end_date_support This is the date after which the product will no longer be supported.

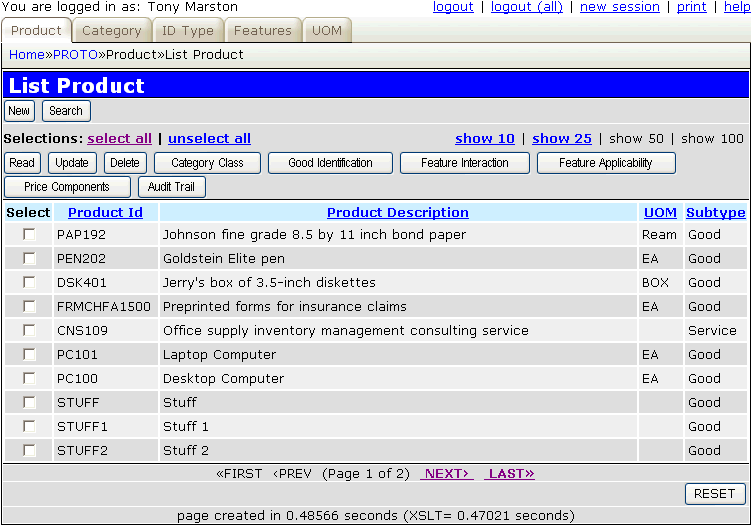

Figure 2 - Product Definition

product-prototype-002 (12K)

Product Category

The classification of products is a key aspect of maintaining product information. Products are often classified in many ways - by product line, by model, by product grade, by industry segments, and by various other categories. Instead of giving each of these classifications a separate entity in the data model it is often a better idea to group them together in a single entity as this allows categories to be easily related as supertype and subtype. This allows the targeting of market interest in products based on several product categories, and also allows product pricing to be based on and related to many product categories.

It is also possible for a product category to contain other product categories. For example, the categories "paper" and "pens" can be defined as sub-categories to "office supplies". It is also possible for any category to belong to more than one super-category. For example, "paper" is a sub-class of "office supplies" but may also be a sub-class of "computer supplies".

It is possible to give a product more than one category. For example, diskettes are categorised both as office supplies and computer supplies. When performing various queries by category, such as sales reports, it would be possible for the same product's sales to appear under multiple categories. The mode has a primary flag to indicate which is the primary category for each product to avoid this situation.

PRODUCT_CATEGORY table
prod_cat_id This is the entry's identity.
prod_cat_desc This is the entry's description.
product_usage This is a way of categorising products by usage.
product_industry This is a way of categorising products by industry.
product_materials This is a way of categorising products by material.

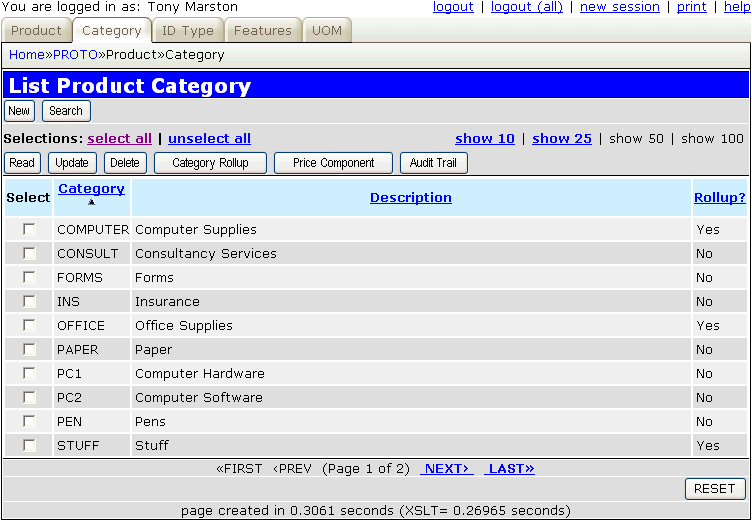

Figure 3 - Product Category

product-prototype-003 (10K)
PROD_CAT_ROLLUP table
prod_cat_id_snr This is the senior/parent entry in the hierarchy. It is a foreign key to the PRODUCT_CATEGORY table.
prod_cat_id_jnr This is the junior/child entry in the hierarchy. It is a foreign key to the PRODUCT_CATEGORY table.

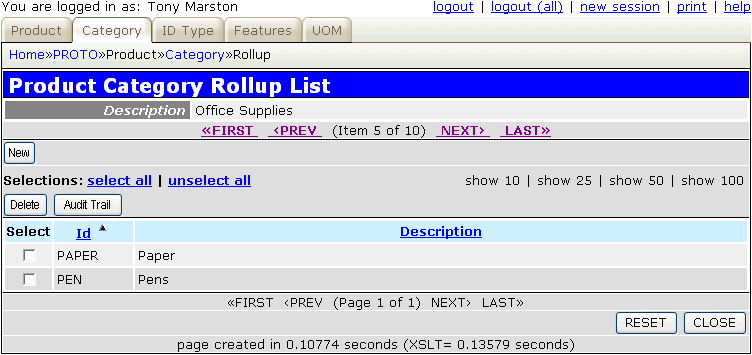

Figure 4 - Product Category Rollup

product-prototype-004 (8K)
PROD_CAT_CLASS table
product_id This is a foreign key to the PRODUCT table.
prod_cat_id This is a foreign key to the PRODUCT_CATEGORY table.
seq_no This is a system generated number which makes the primary key unique.
primary_flag Used to show that this is the primary category category for reporting purposes.
start_date This is the date on which this entry starts.
end_date This is the date on which this entry ends.

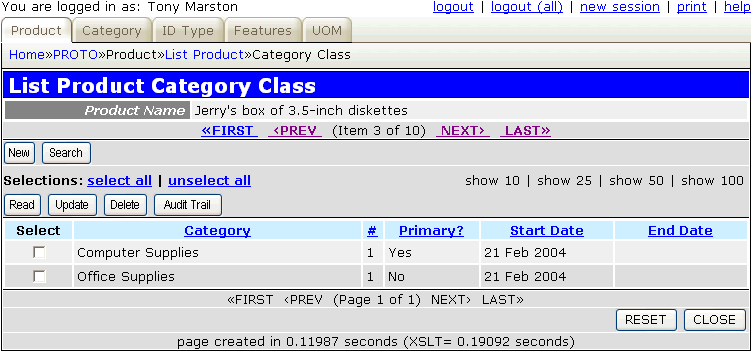

Figure 5 - Product Category Classification

product-prototype-005 (9K)

Product Identification Codes

Goods may have various ids that are used as a standard means of identifying them. The data model must therefore allow each product to have any number of different identity codes.

GOOD_IDENTITY_TYPE table
identity_type_id This is the entry's identity.
identity_type_desc This is the entry's description.

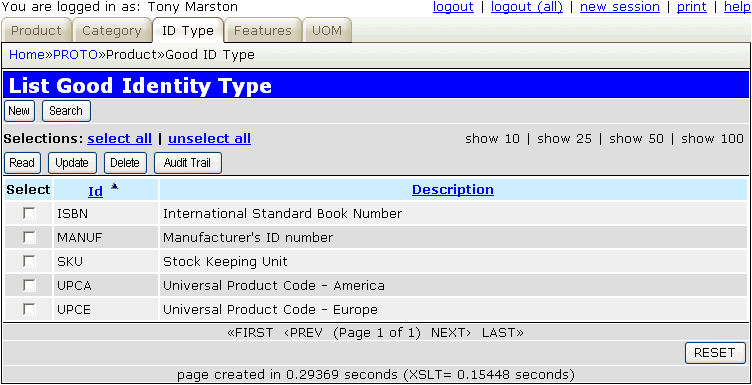

Figure 6 - Product Identity Types

product-prototype-006 (8K)
GOOD_IDENTIFICATION table
product_id This is a foreign key to the PRODUCT table.
identity_type_id This is a foreign key to the GOOD_IDENTITY_TYPE table.
id_value This is the value for this combination of product and identity type.

Unique keys are:

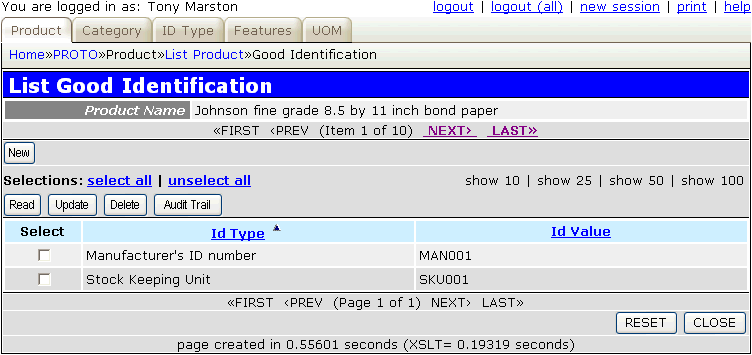

Figure 7 - Product Identification

product-prototype-007 (8K)

Product Features

Products may have features that could also be called characteristics, options, variations or modifiers, allowing either customisation of a product or describing the characteristics of a product. These features and options are combined into a single table as what might be a feature to one product could be an option on another. Also, the same product variation may be part of the product one day but later in time be considered as an optional feature.

The data model must therefore be capable of holding details of features that may be required as part of the product, may come standard with the product (meaning that they may be de-selected), or may be selected as an option. It should also be possible to define certain combinations of features as either mutually exclusive or mandatory.

PRODUCT_FEATURE_CATEGORY table
prod_feature_cat_id This is the entry's identity.
prod_feature_cat_desc This is the entry's description.
measurement_reqd This identifies if this type of feature requires a measurement.

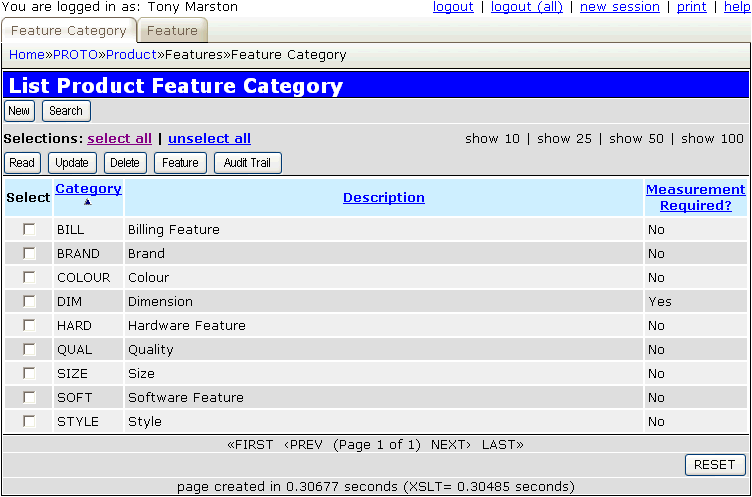

Figure 8 - Product Feature Category

product-prototype-008 (10K)
PRODUCT_FEATURE table
prod_feature_id This is a unique identifier which is generated by the system.
prod_feature_desc This is the entry's description.
prod_feature_cat_id This is a foreign key to the PRODUCT_FEATURE_CATEGORY table.
uom_id If this category of feature requires a measurement then this is a foreign key to the UNIT_OF_MEASURE table.
measurement If this category of feature requires a measurement then this is the number of units.

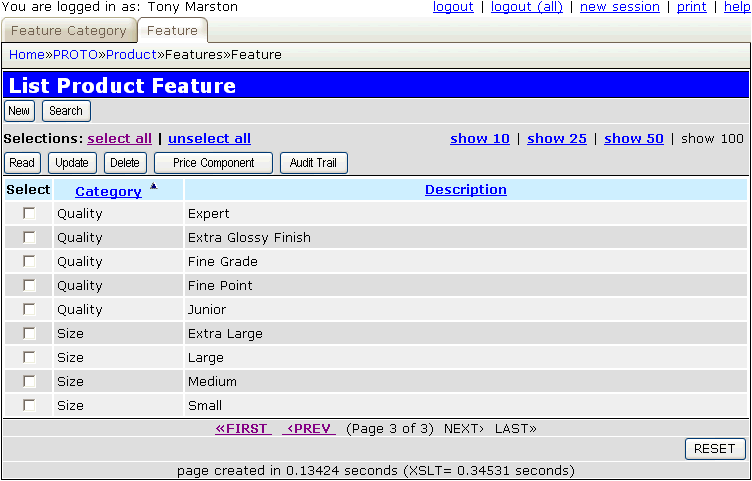

Figure 9 - Product Feature

product-prototype-009 (9K)
PROD_FEATURE_APPLICABILITY table
product_id This is a foreign key to the PRODUCT table.
prod_feature_id This is a foreign key to the PRODUCT_FEATURE table.
seq_no This is a system generated number which makes the primary key unique.
feature_type
  • Standard
  • Optional
  • Required
  • Selectable
start_date The date on which this entry starts.
end_date The date on which this entry ends.

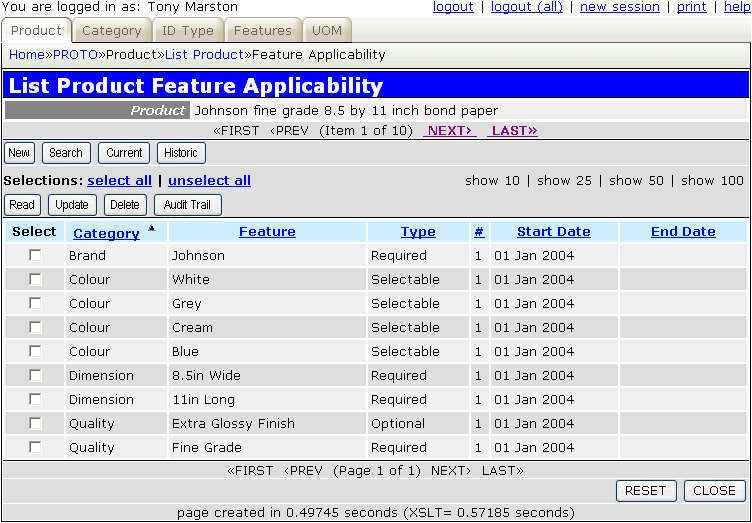

Figure 10 - Product Feature Applicability

product-prototype-010 (13K)
PROD_FEATURE_INTERACTION table
product_id This is a foreign key to the PRODUCT table.
prod_feature_id_snr This is a foreign key to the PRODUCT_FEATURE table.
prod_feature_id_jnr This is a foreign key to the PRODUCT_FEATURE table.
feature_interaction
  • Dependent - if you have one feature then you MUST have the other.
  • Incompatible - if you have one feature then you MUST NOT have the other.

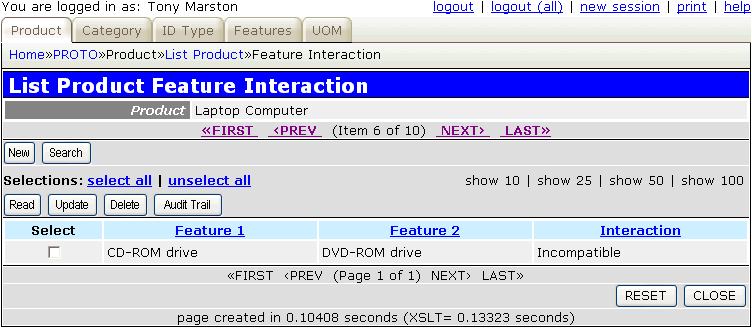

Figure 11 - Product Feature Interaction

product-prototype-011 (8K)

Units of Measure

Although a unit of measure may be considered to be an example of another product feature, in actuality most organisations will conclude that if the same type of product is sold in different units of measure then it is a different product. For example, a ream of paper is quite different from a box which contains 5 reams, and would be regarded as a separate product. This is why UOM_ID is included in the PRODUCT table.

It is important for organisations to be able to determine inventory for products that are identical except for the unit of measure. The UOM_CONVERSION table provides the capability to use a common unit of measure to calculate how much inventory of a product the organisation has. For example, there may be several products for Henry #2 pencils that have different units of measure such as "each", "small box" and "large box". In many cases, organisations need to show total inventories, costs and sales for all of a product regardless of its unit of measure. By defining a common unit of measure such as "each", and including a conversion factor (for example, 12 for "small box" and 24 or "large box") it is possible to determine the total amount of Henry #2 pencils that are in inventory and how many have been sold.

UOM_CATEGORY table
uom_cat_id This is the entry's identity.
uom_cat_desc This is the entry's description.

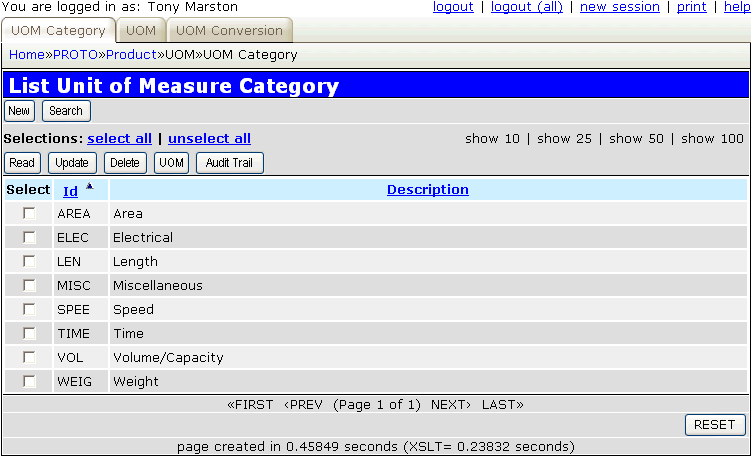

Figure 12 - Unit of Measure Category

product-prototype-012 (9K)
UNIT_OF_MEASURE table
uom_id This is the entry's identity.
uom_desc This is the entry's description.
uom_cat_id This is a foreign key to the UOM_CATEGORY table.
uom_abbrev This is an abbreviation of the entry's description.

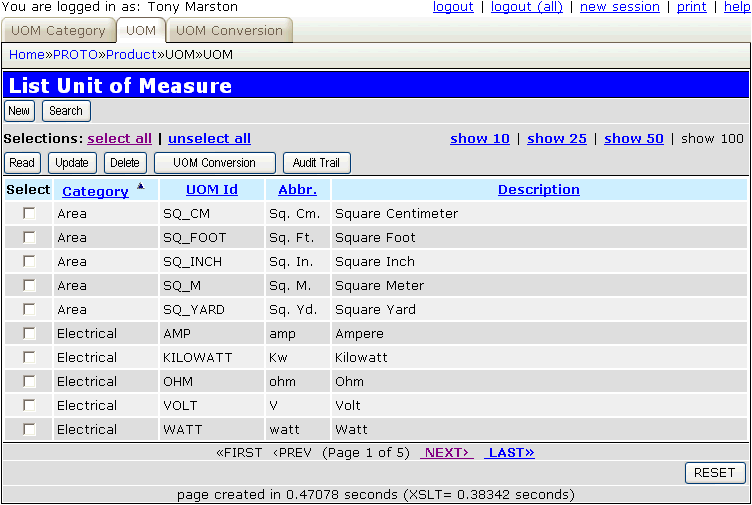

Figure 13 - Unit of Measure

product-prototype-013 (11K)
UOM_CONVERSION table
uom_id_from This is the unit of measure being converted FROM.
uom_id_to This is the unit of measure being converted TO.
conversion_factor This is a multiplier. The FROM units are multiplied by this number to obtain the number of TO units.

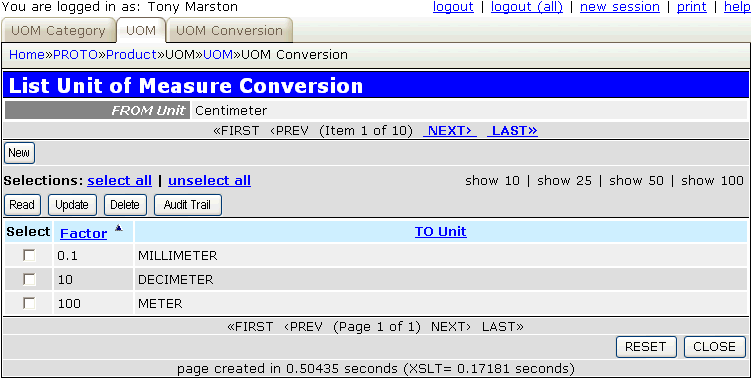

Figure 14 - Unit of Measure Conversion

product-prototype-014 (8K)

Product Search

Many different options can be applied to each product, so it should be possible to search for products via any of these options. This makes the search a little more complicated as it has to scan several database tables instead of just one, and in the case of PRODUCT_CATEGORY it will also have to navigate down the hierarchy of sub-categories.

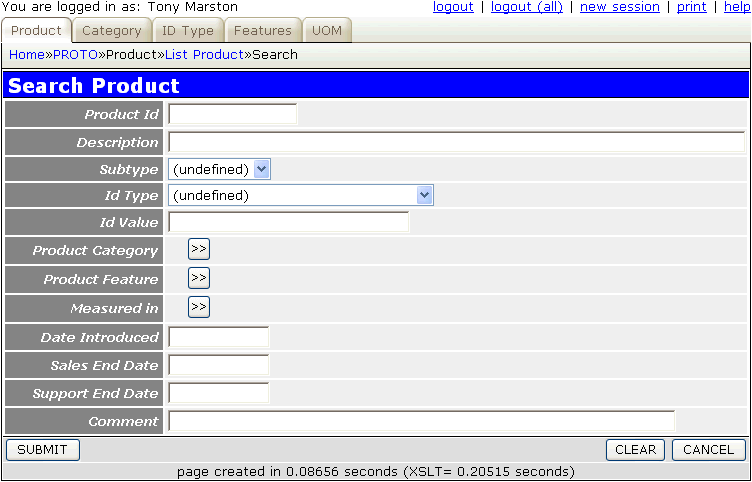

Figure 15 - Product Search

product-prototype-015 (8K)

Price Components

Every organisation seems to have different mechanisms for pricing its products. Most organisations have several aspects to their product price - the base price, various discounts such as quantity breaks, surcharges such as freight and handling charges, and the manufacturer's recommended price.

Each price component stores a start_date and end_date to indicate the dates for which the entry is valid. Each component also stores either a price or a percentage (such as for discounts), but not both.

Each price component may be based on many variables or combinations of these variables. As well as PRODUCT and PRODUCT_FEATURE there may be others such as:

PRICE_COMPONENT table
price_component_id This is a unique key generated by the system.
product_id This is a foreign key to the PRODUCT table.
prod_feature_id This is a foreign key to the PRODUCT_FEATURE table.
prod_cat_id This is a foreign key to the PRODUCT_CATEGORY table.
start_date The date on which this entry starts.
end_date The date on which this entry ends.
price A value expressed in local currency.
percent A percentage of the base price.
price_type
  • Base Price
  • Discount
  • Surcharge
  • MRP
price_frequency
  • One Time Charge - e.g. for buying the product.
  • Recurring Charge - e.g. an ongoing charge such as a monthly fee.
  • Utilisation Charge - e.g. for using the product.
uom_id This is a foreign key to the UNIT_OF_MEASURE table.
quantity A number of units.

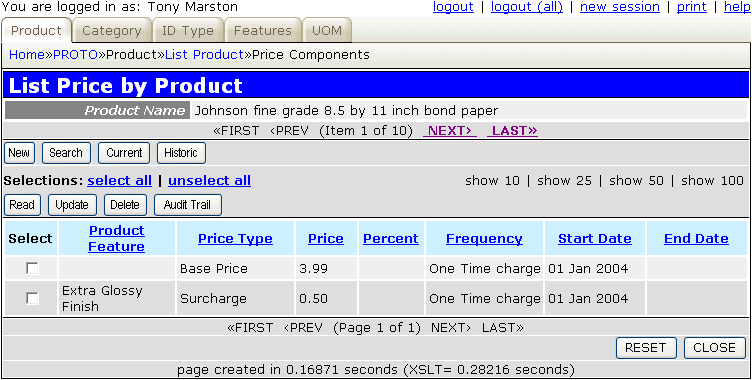

Figure 16 - Price Components

product-prototype-016 (10K)

Price component details can be accessed from the following:

Database Schema - Inventory

The following database schema is based on the one documented in The Data Model Resource Book by Len Silverston.

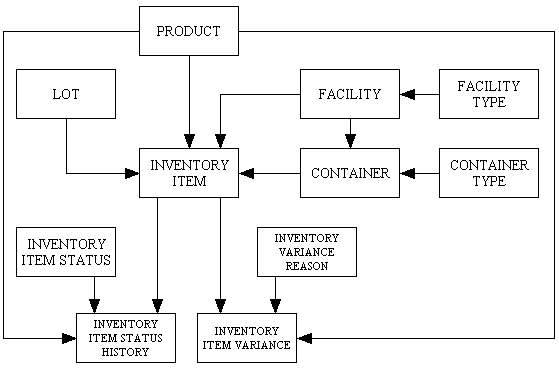

Figure 17 - Database Schema (Inventory)

container table container_type table facility table facility_type table inventory_item table inventory_item_status table inventory_item_status_hist table inventory_item_variance table inventory_variance_reason table lot table product table product-prototype-017 (2K)

Inventory Item

While a GOOD represents a catalogued item or a standard product that can be purchased, an INVENTORY ITEM represents the physical occurrence of a good at a location. The good may be "Johnson fine grade 8½ by 11 bond paper" while the inventory item is 100 reams of this good sitting in the central warehouse.

The inventory item may be serialised, which means that each unit has its own serial number by which it can be tracked, or non-serialised, which means that a group of items has a on-hand quantity which may be split across several locations. Non-serialised items may also be tracked by their LOT number.

INVENTORY_ITEM table
product_id This is a foreign key to the PRODUCT table.
inventory_item_id This is a unique key generated by the system.
inv_type
  • Serialised
  • Non-serialised
serial_no A unique value for the product, only required if the product is serialised.
qty_on_hand Quantity on hand. This is always 1 for a serialised part.
total_qty This is the total quantity before any variances are taken into account.

QTY_ON_HAND = TOTAL_QTY + VARIANCE_QTY.

facility_id This is a foreign key to the FACILITY table.
container_id This is a foreign key to the CONTAINER table.
lot_id This is a foreign key to the LOT table.
inv_item_status_id If there are any entries on INV_ITEM_STATUS_HIST then this is taken from the entry with the latest date. Defaults to '1' (OK) otherwise.

Unique keys are:

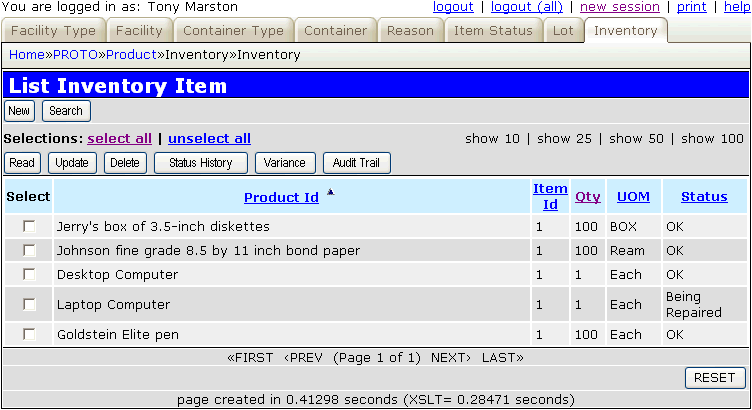

Figure 18 - Inventory Items

product-prototype-018 (10K)

Inventory Item Location

Each inventory item may be tracked at a facility level, such as a warehouse, or it may be tracked at a more detailed level within a facility such as a container or a bin.

FACILITY_TYPE table
facility_type_id This is a unique key generated by the system.
facility_type_desc This is the entry's description.

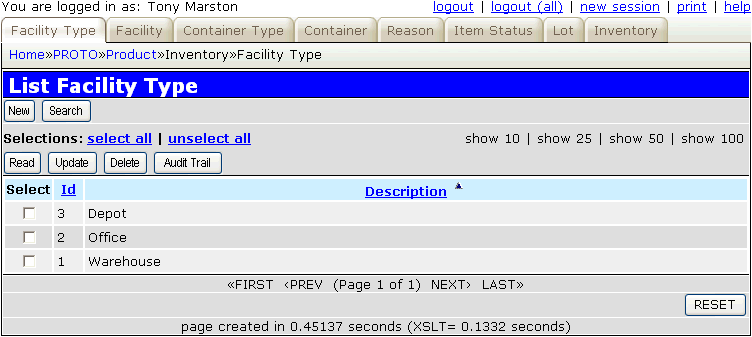

Figure 19 - Facility Types

product-prototype-019 (7K)
FACILITY table
facility_id This is a unique key generated by the system.
facility_desc This is the entry's description.
facility_type_id This is a foreign key to the FACILITY_TYPE table.

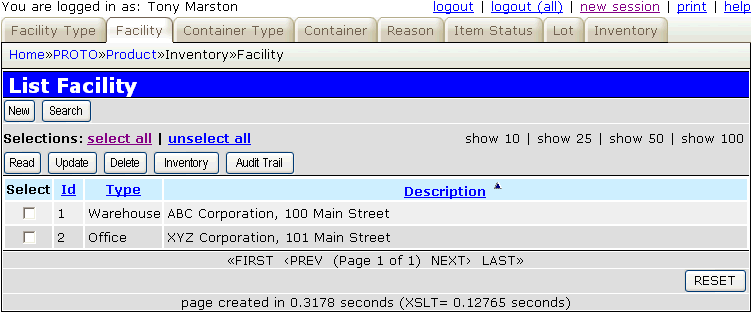

Figure 20 - Facilities

product-prototype-020 (8K)
CONTAINER_TYPE table
container_type_id This is a unique key generated by the system.
container_type_desc This is the entry's description.

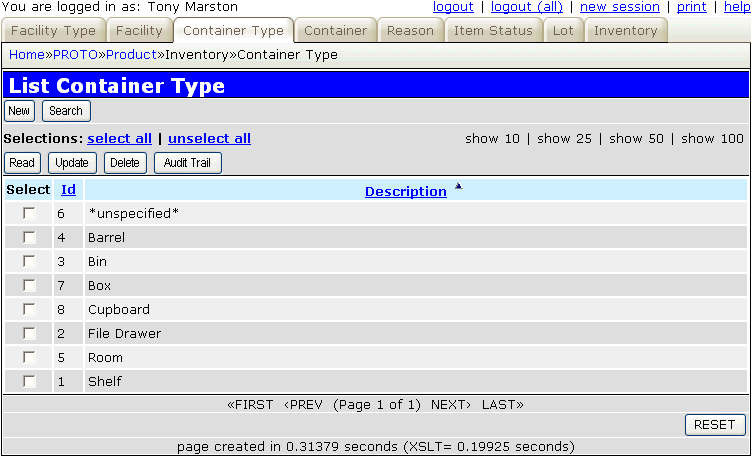

Figure 21 - Container Types

product-prototype-021 (8K)
CONTAINER table
facility_id This is a foreign key to the FACILITY table.
container_id This is a unique key generated by the system.
container_desc This is the entry's description.
container_type_id This is a foreign key to the CONTAINER_TYPE table. If a facility does not have individual containers then the dummy container "unspecified" should be used.

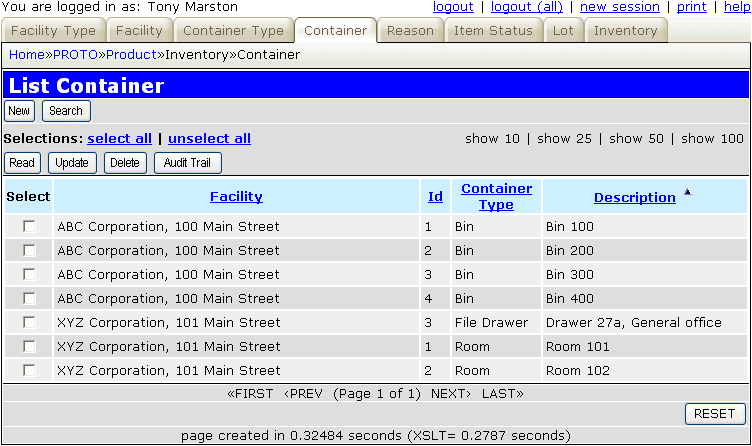

Figure 22 - Containers

product-prototype-022 (11K)

Inventory Item Status

Each inventory item has a status which records its current condition, for example "OK", "damaged", "being repaired", et cetera. Inventory items which are serialised may have their status changed to different values over a period of time and these changes will be recorded in a separate HISTORY table. Inventory items which are non-serialised should use inventory item variance instead as this allows different quantities of the same item to be given different status values.

INVENTORY_ITEM_STATUS table
inv_item_status_id This is a unique key generated by the system.
inv_item_status_desc This is the entry's description.

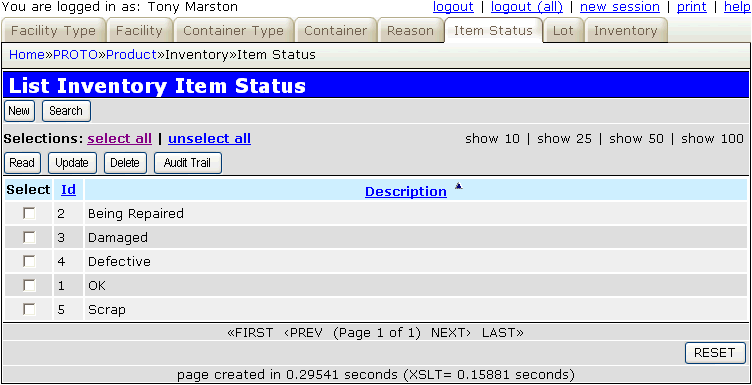

Figure 23 - Inventory Item Status

product-prototype-023 (8K)
INVENTORY_ITEM_STATUS_HIST table
product_id This is a foreign key to the INVENTORY_ITEM table.
inventory_item_id This is a foreign key to the INVENTORY_ITEM table.
seq_no This is a unique key generated by the system.
inv_item_status_id This is a foreign key to the INVENTORY_ITEM_STATUS table.
status_date This is the date on which the status changed.

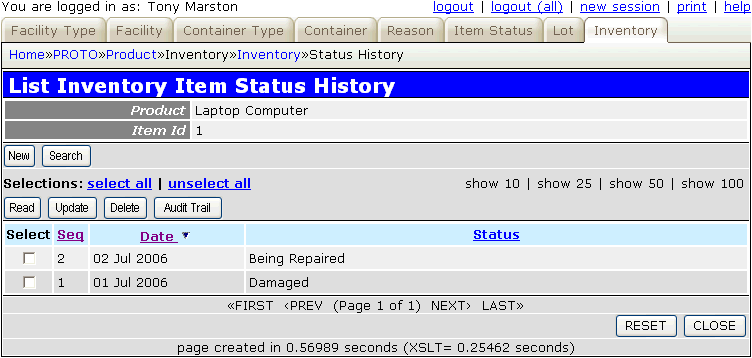

Figure 24 - Inventory Item Status History

product-prototype-024 (8K)

Inventory Item Variance

It is possible that the quantity of a item recorded in the system is different to the actual physical quantity. This difference, either a shrinkage or overage, may be discovered during a stock check or inspection. The variance quantity is the difference between the on-hand quantity of the item and the physical inventory at the time of the inventory date. As each variance record is created the item's on-hand quantity will automatically be adjusted.

INVENTORY_VARIANCE_REASON table
inv_var_reason_id This is a unique key generated by the system.
inv_var_reason_desc This is the entry's description.

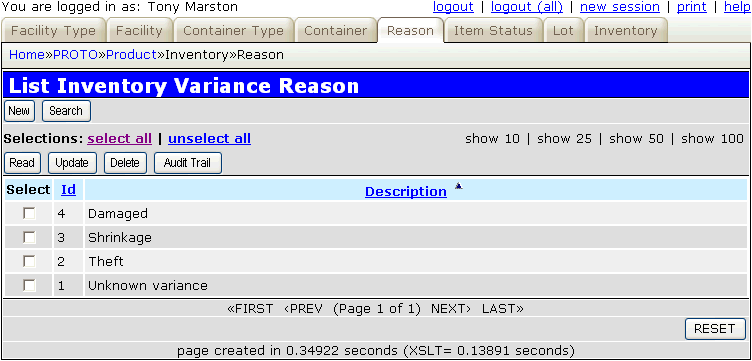

Figure 25 - Inventory Item Variance Reason

product-prototype-025 (8K)
INVENTORY_ITEM_VARIANCE table
product_id This is a foreign key to the INVENTORY_ITEM table.
inventory_item_id This is a foreign key to the INVENTORY_ITEM table.
seq_no This is a unique key generated by the system.
inv_var_reason_id This is a foreign key to the INVENTORY_VARIANCE_REASON table.
inventory_date This is the date on which the variance was discovered.
variance_qty This is the variance quantity.
  • Negative amounts will reduce the on-hand quantity for the item
  • Positive amounts will increase the on-hand quantity for the item
comment This is to allow non-standard explanations.

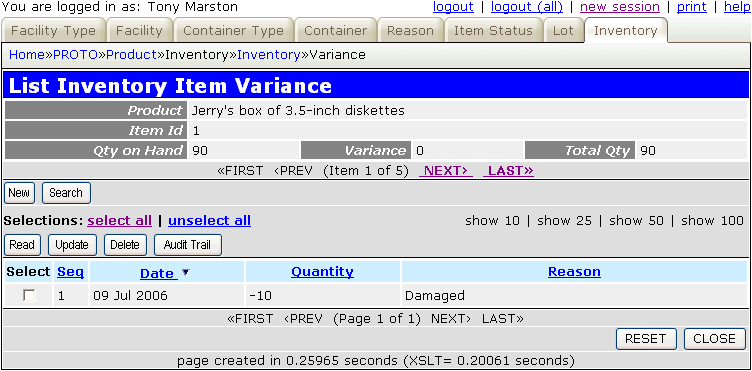

Figure 26 - Inventory Item Variance

product-prototype-026 (9K)

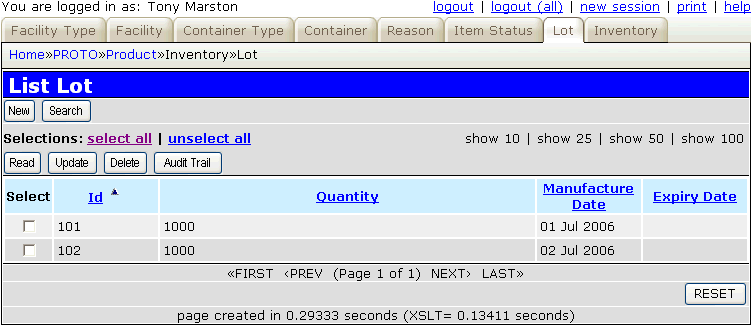

Lot Tracking

A concept found in some production-oriented industries is that of the LOT. A lot is simply a grouping of items of the same type generally used to track inventory items back to their source, and is often the result of a production run. Another source of lot information may be from the shipment from suppliers, which would determine the lot. This information is very important in the event that a recall of items is required.

Inventory items can be separately identified by lots because each INVENTORY ITEM may be made up of one and only one LOT. This implies that there may be more than one inventory item of the same item type at a specific location if there is more than one lot involved.

LOT table
lot_id This identifies the lot. It is entered manually, not generated by the system.
quantity This is the quantity made available with this lot.
manuf_date This is the date on which the lot was produced or manufactured.
expiry_date This is the expiry date (if any) for the lot.

Figure 27 - Lots

product-prototype-027 (7K)

© Tony Marston
29th June 2006

http://www.tonymarston.net
http://www.radicore.org

Amendment history:

9th July 2006 Added tables and functions to deal with product inventory.

counter
